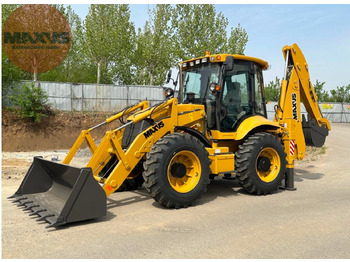

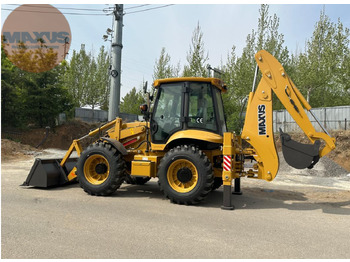

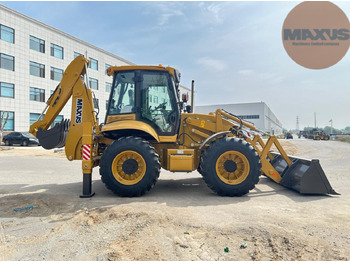

חָדָשׁ מחפרון maxus Backhoe Loader MAXUS 4CX

Overall Dimensions

Length (with bucket on the ground): 6450±80 mm

Overall Width (with stabilizer): 2650 ± 20 mm

Bucket Width: 2620 mm

Height (to the top of the cabin): 3120 ± 10 mm

Height (to the top of the digging boom): 3940 ± 20 mm

Wheelbase: 2335±10 mm

Rear Wheel Tread: 2139 ±10 mm

Main Loading Technical Specifications

Rated Load Capacity: 2500 kg

Operating Weight: 9120 kg

Rated Bucket Capacity: 1.2 m³

Max. Dump Ground Clearance: 3050±50 mm

Dump Reach: 870±20 mm

Beyond Bucket: 5750±50 mm

Main Digging Technical Specifications

Rated Digging Bucket Capacity: 0.3 m³

Max. Digging Depth: 3820±20 mm

Max. Digging Radius: 5345±20 mm

Max. Dump Height: 3740±20 mm

Max. Digging Force (kgf)

Max. Digging Height: 5470 ±20 mm

Lifting Force at Max. Digging Radius: 1220 kg

Max. Excavation Depth (Telescopic Arm): 4970±20 mm

Max. Loading Height (Telescopic Arm): 4983±20 mm

Max. Excavation Height (Telescopic Arm): 6680±20 mm

Diesel Engine

Model: YC4A105Z-T20

Manufacturer: Yuchai

Rated Power: 75 (kW)

Capacity: 4.8 (L)

Rated Speed: 2200 (rpm)

Max. Torque: 400 (Nm)

Transmission System

Torque Converter Model: 315

Cooling Type: Oil Circulation Under Pressure

Gearbox Housing Model: 15

Type: Mechanical Gear Synchronization

Axles and Tires Model: WZL100

Gearshift Position: 4 F, 4 R

(Front/Rear) Speed (km/h):

F1 — 5 km/h; F2 — 10 km/h;

F3 — 18 km/h; F4 — 32 km/h;

R1 — 5 km/h; R2 — 10 km/h;

R3 — 18 km/h; R4 — 32 km/h;

Tire Size: 16.9-28

Hydraulic System

Working Pump Displacement: 63 ml/r

Pump Working Pressure: 20 MPa

Steering Gear Type: BZZ-500

Digging Equipment (Breaker Hammer)

Drill Rod Diameter (mm): 68-70

Operating Pressure (MPa): 11-14

Impact Frequency: 500-900

Flow Range (l/min): 25-45

Kinetic Energy (KN): 49

Oil Capacity

Hydraulic Oil Tank Capacity: 125 L

Diesel Tank Capacity: 125 L
