חָדָשׁ סילו מלט Constmach Silo à Ciment d'une Capacité de 100 Tonnes

You can call us 24/7 for a 100 ton cement silo for sale.

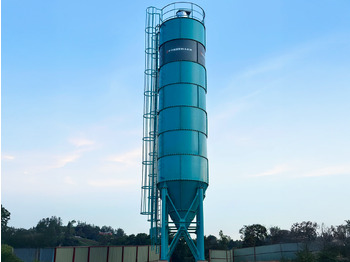

CS-100 cement silo is a product that stands out with its durability and high capacity structure. with a capacity of 100 tons (78 m3), it can be safely used in large-scale projects. with a height of 18920 mm and a diameter of 3060 mm, this silo stands on four solid legs and offers a stable structure with a weight of 8000 kg. With an output diameter of Ø 300 mm and 120 components, it provides the performance you need.

The body of the silo is made of 37 mm thick metal sheets using ST-5 material, which gives it extra durability. All components, such as the top cover, tapered part support material and foot plates, have been selected in accordance with the highest quality standards. the tapered part, supported by silo foot plates made of 20 mm metal sheets and a 100 mm steel C channel, provides extra stability. In addition, the silo roof is equipped with arrestors and offers easy access with a maintenance platform.

Thanks to its features such as internal manhole and external manhole, ease of use and maintenance access are provided. The charging pipe of the silo is made using 4" steel pipe and extends up to the silo legs. The production process is supported by structure analysis, adhering to approved projects, thus ensuring safe and long-lasting use.

CS-100 Cement Silo is a product that will meet your needs in the best way with its quality and reliability. With its robust structure and large capacity storage facility, it offers you a reliable solution by increasing the efficiency in your projects.

Technical Specifications of CS-100 - 100 Ton Cement Silo

Silo Capacity 100 tons, 78 m3

Silo Height 18920 mm

Silo Diameter Ø 3060 mm

The Amount of Silo Legs is 4

Silo Outlet Diameter Ø 300 mm

Number of Components 120

Silo Weight 8000 kg

Silo Foot Material 219x5 mm, charging pipe

Silo Foot Supports NPL 80 mm corner iron

Silo Foot Plates 20 mm metal sheet

Taper Part Support Material 100 mm steel c channel

Conical Part Material ST - 37 - 6 mm metal sheet

Silo Body Material ST - 37 - 5 mm metal sheet

Silo Top Cover Material ST - 37 - 4 mm metal sheet

Charging Pipe 4" steel pipe up to the silo leg

Internal Manhole is available

External Man Hole is available

The Silo Roof is included in the arrests

The Maintenance Platform is available

Structure Analysis is carried out for the silos and the production process is carried out depending on the approved projects.
