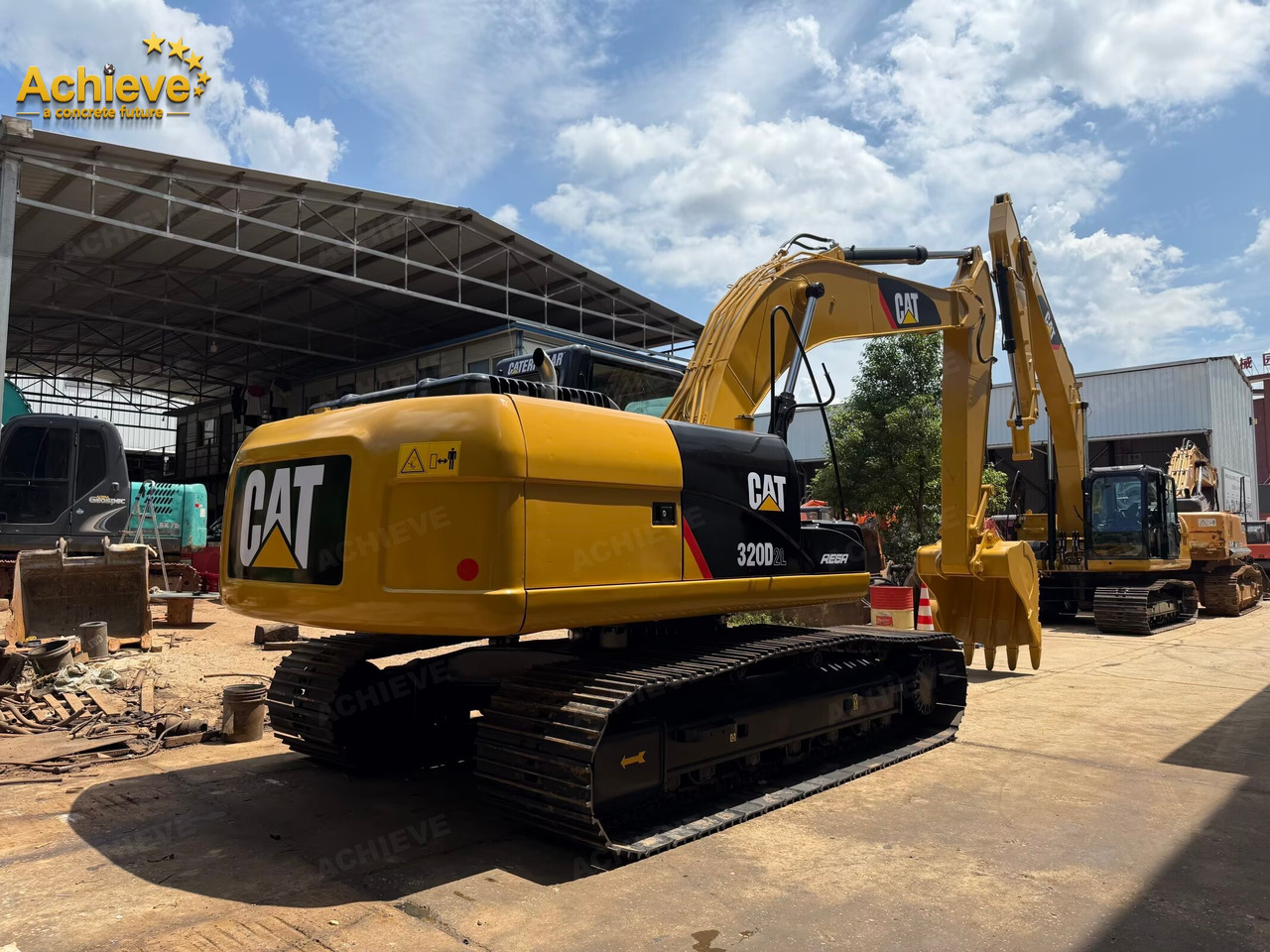

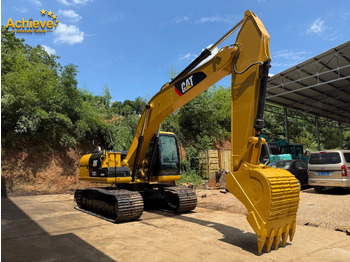

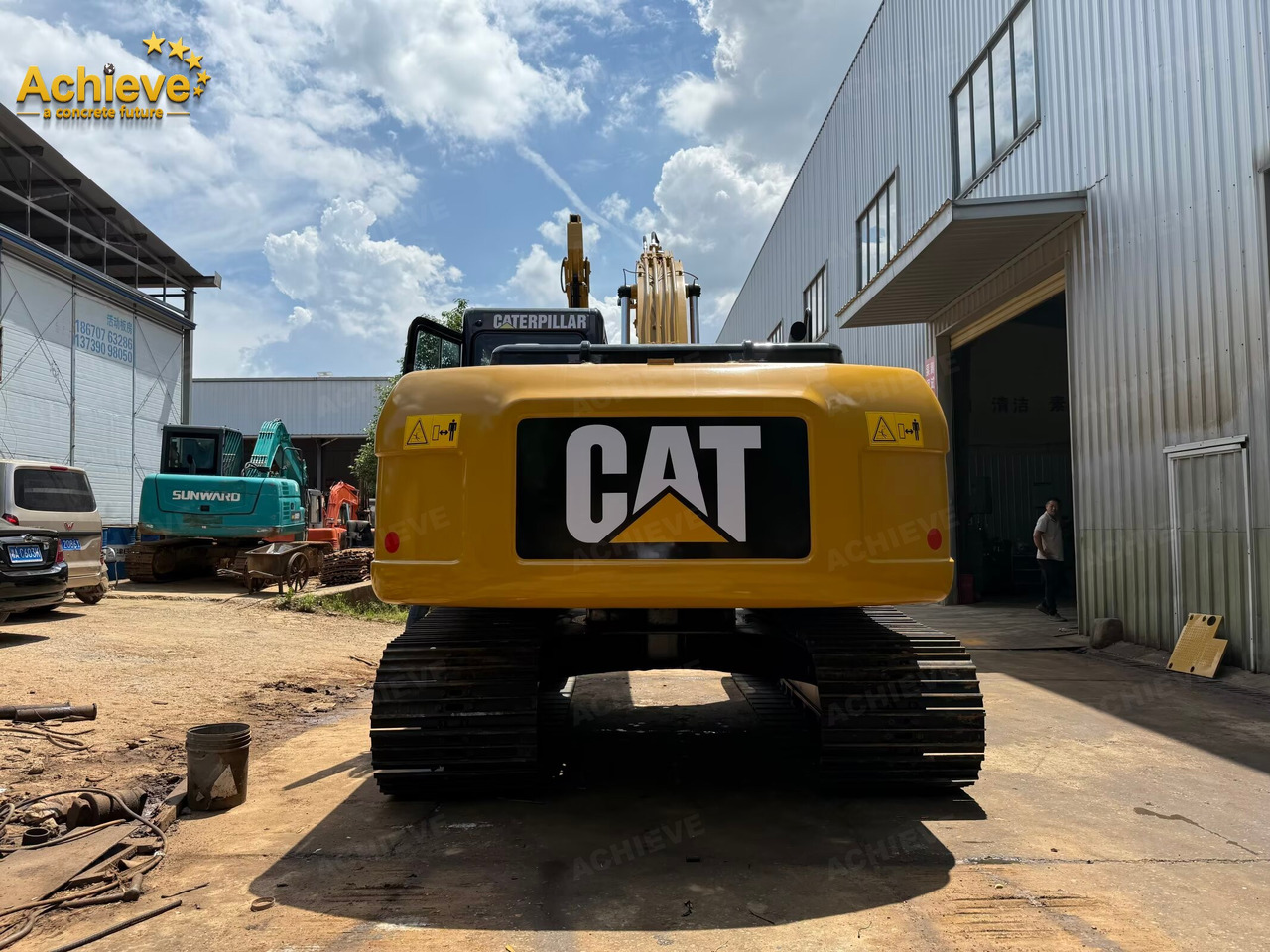

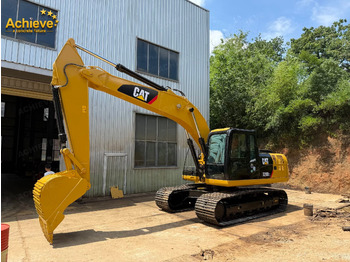

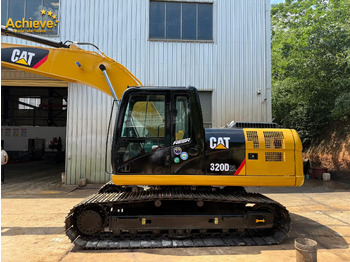

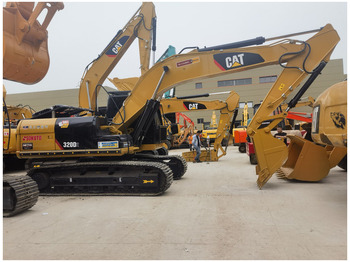

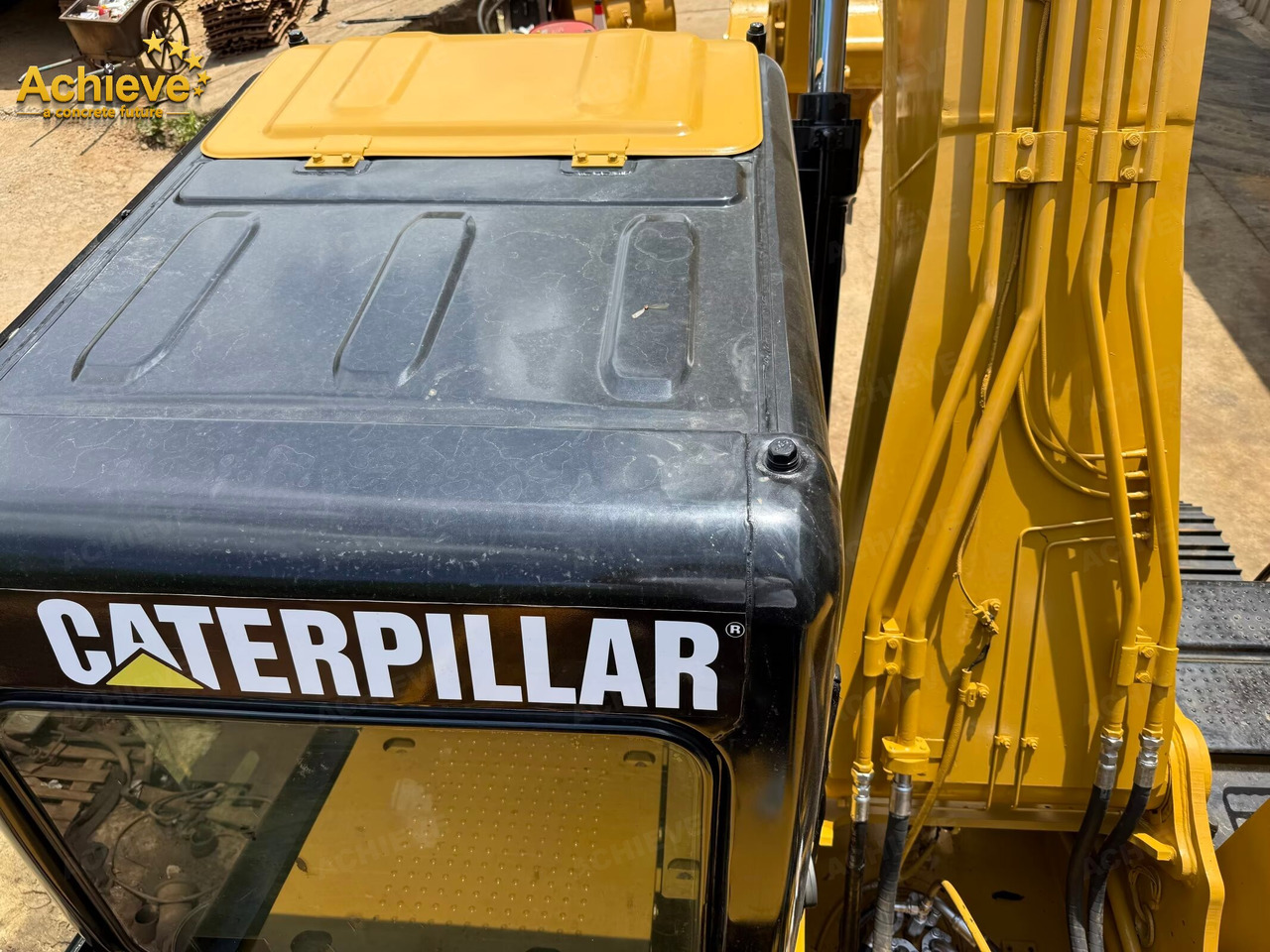

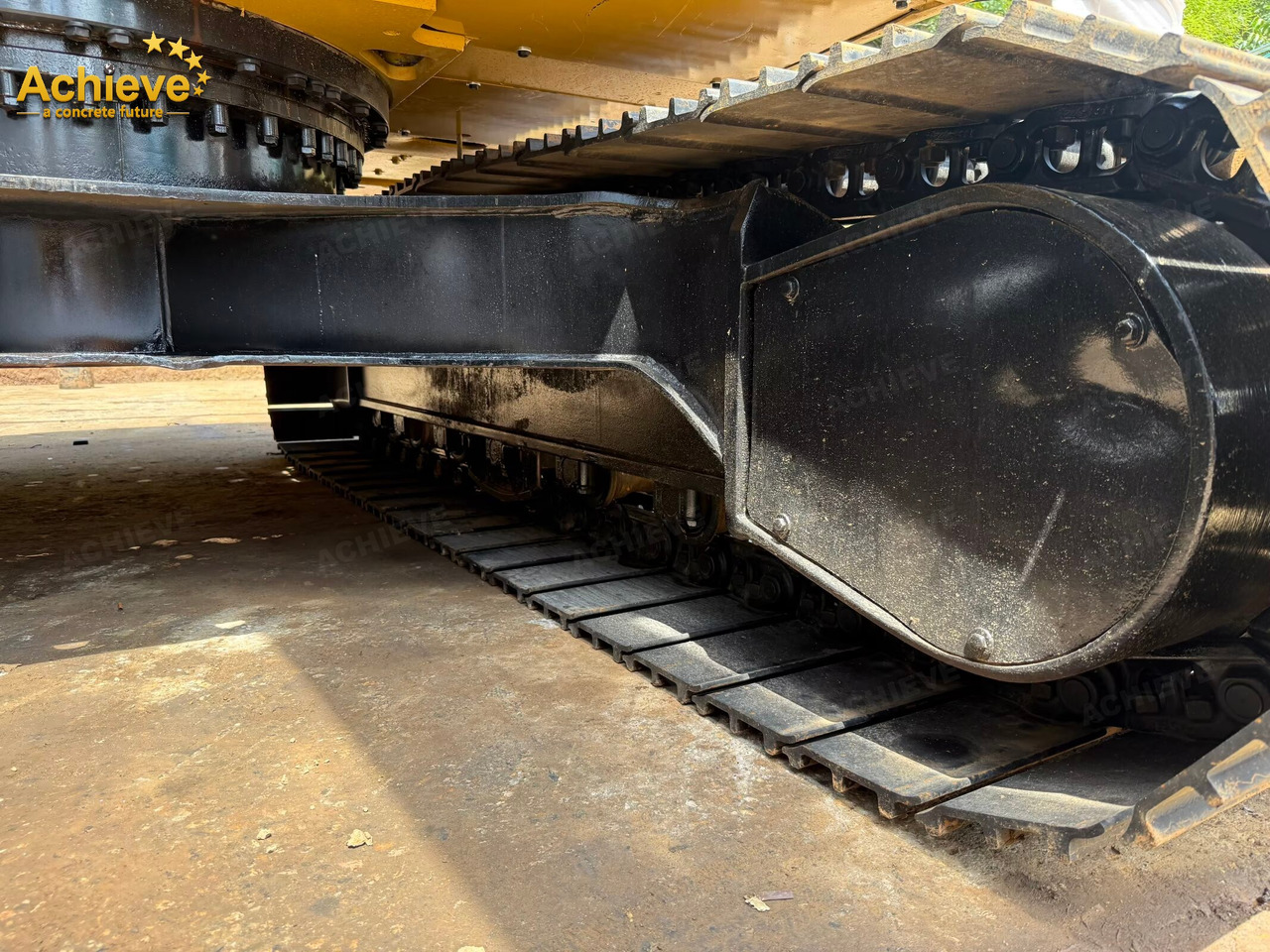

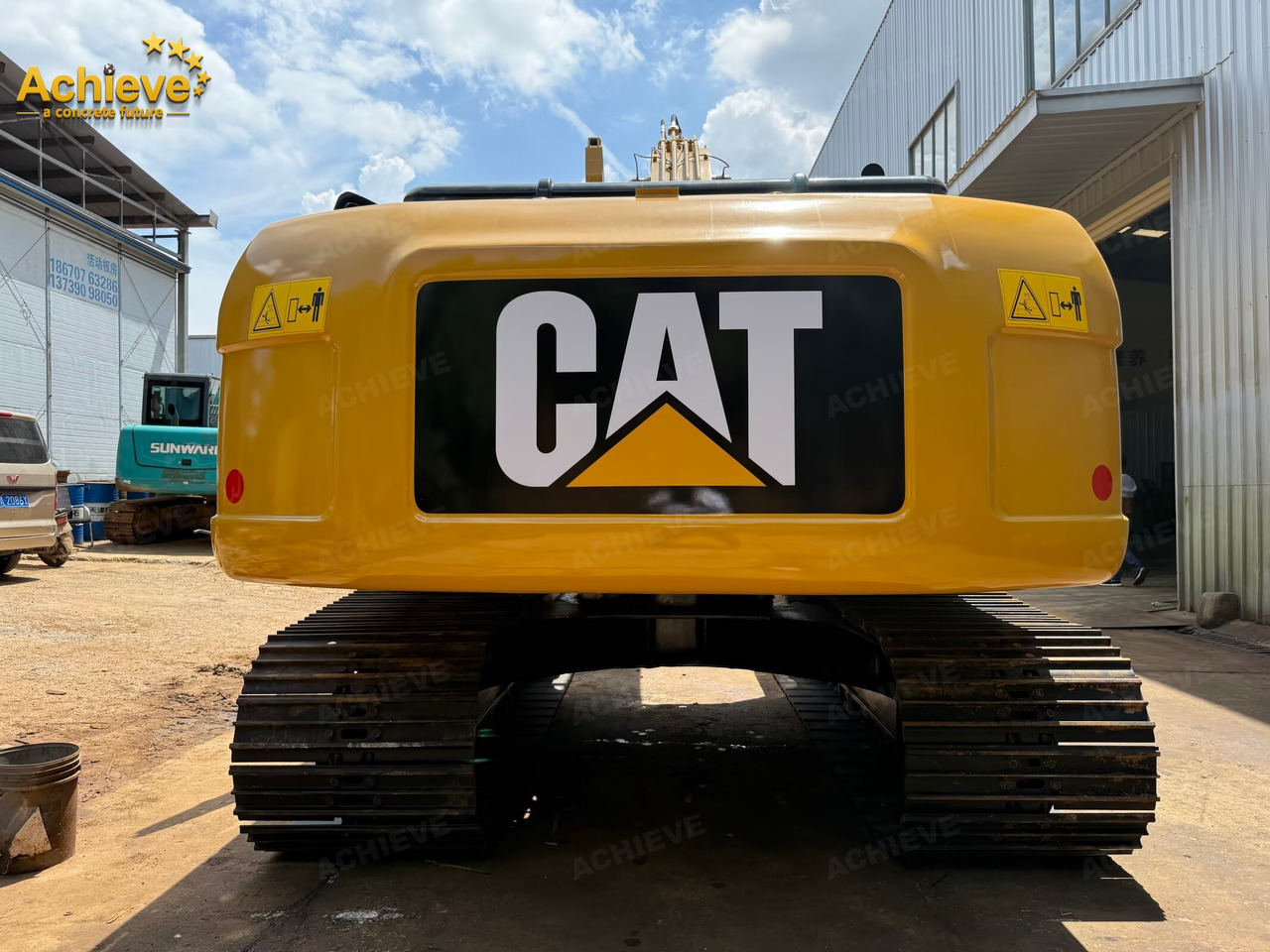

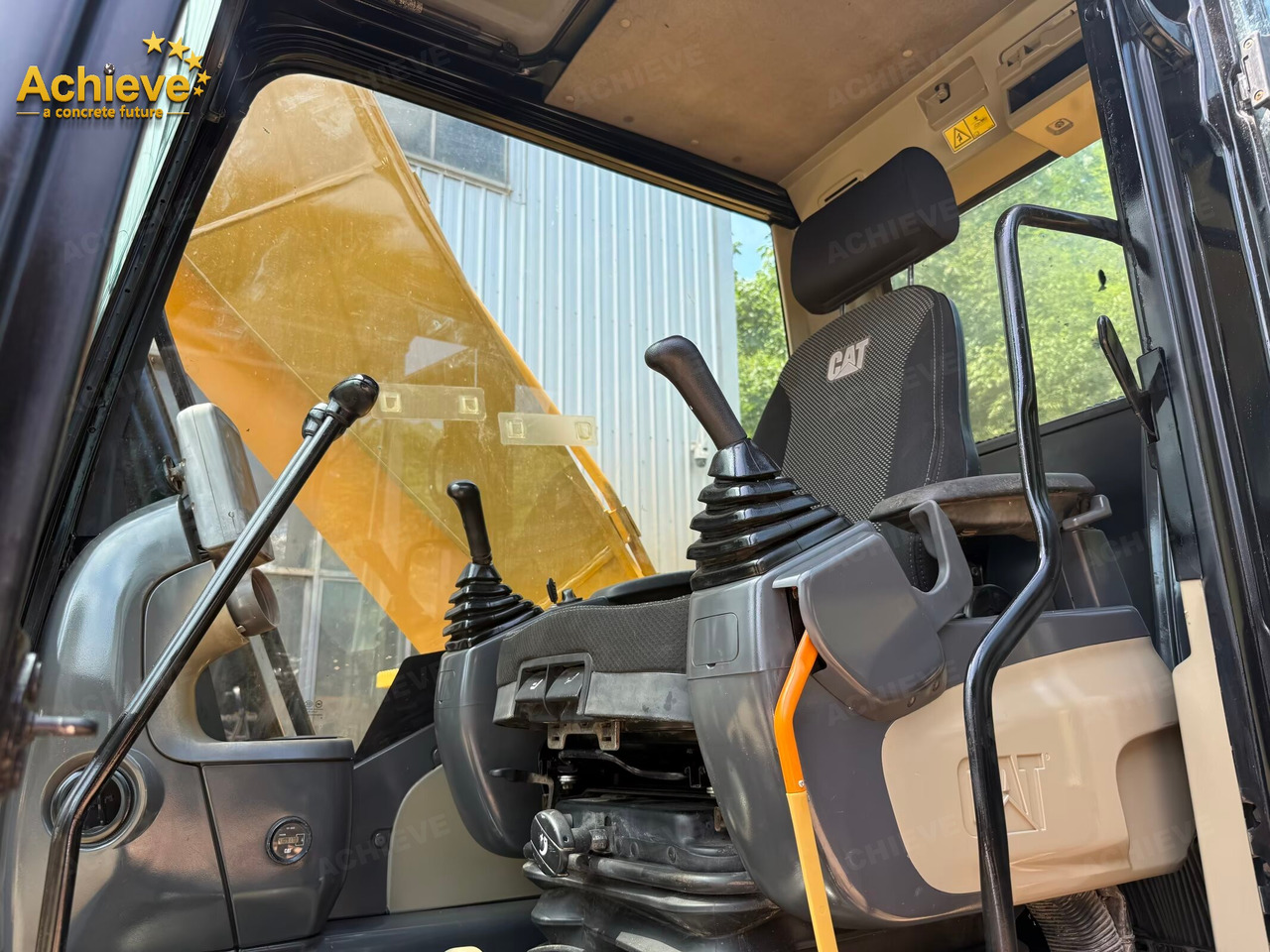

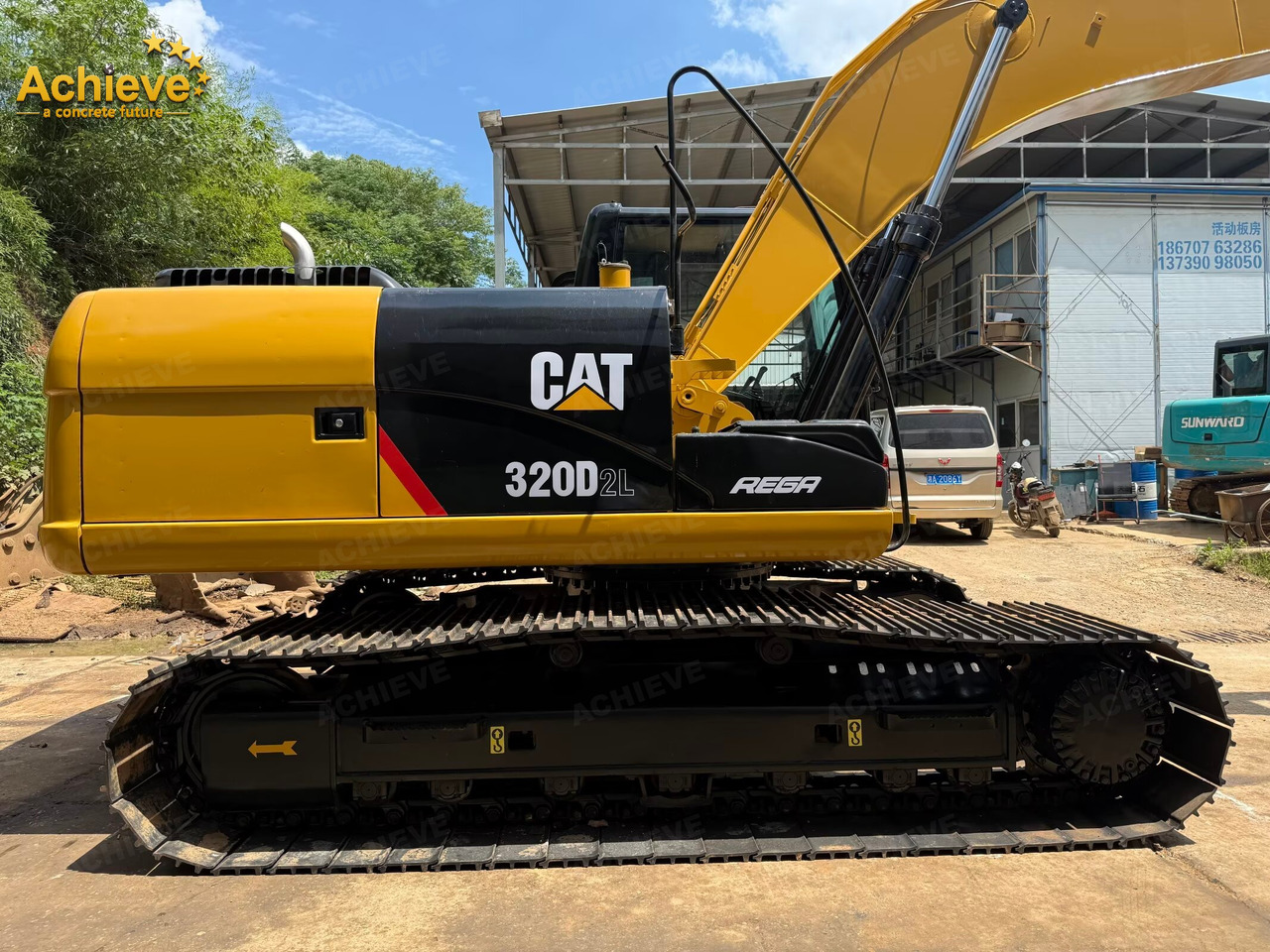

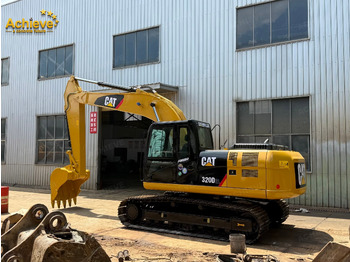

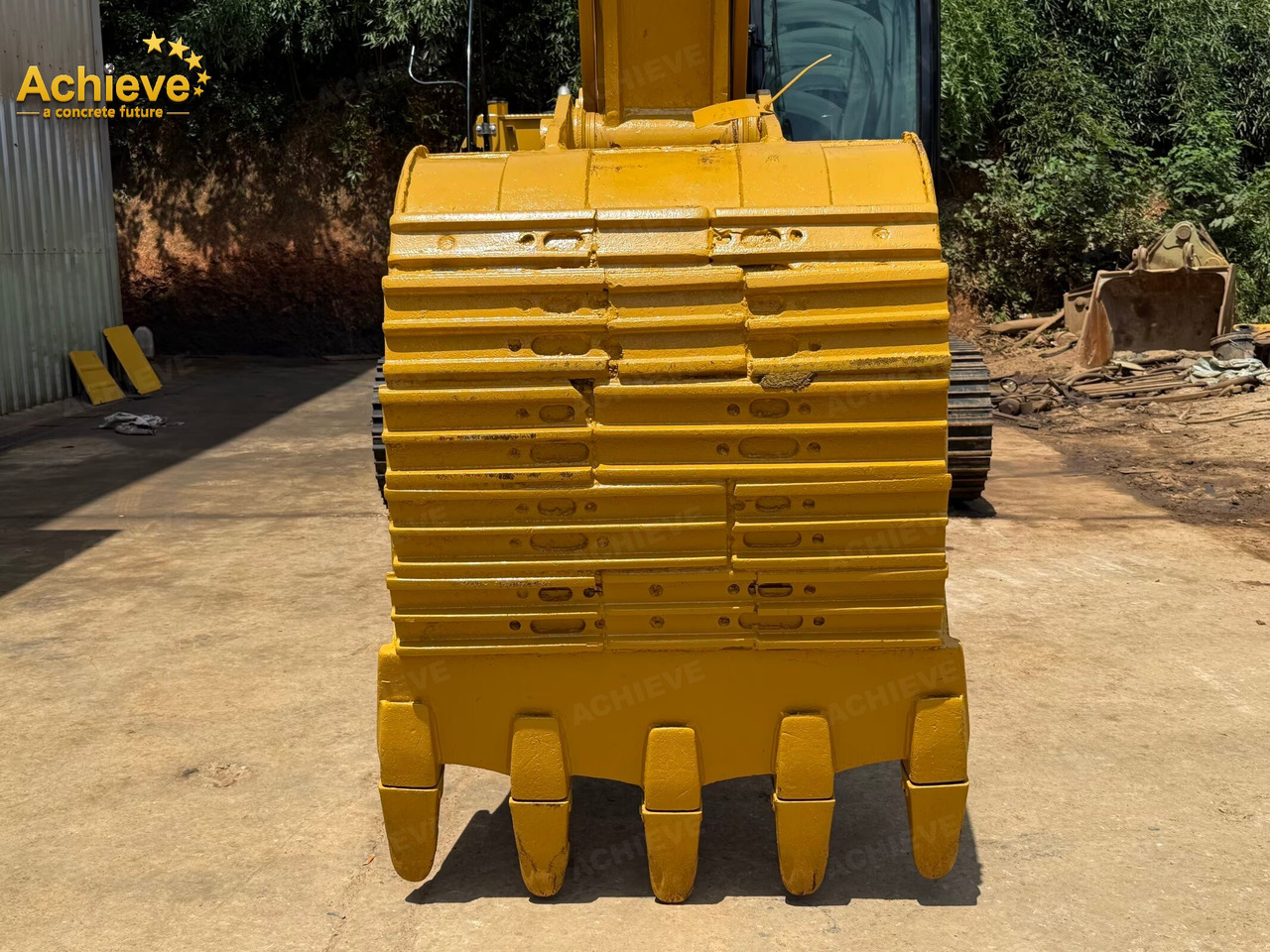

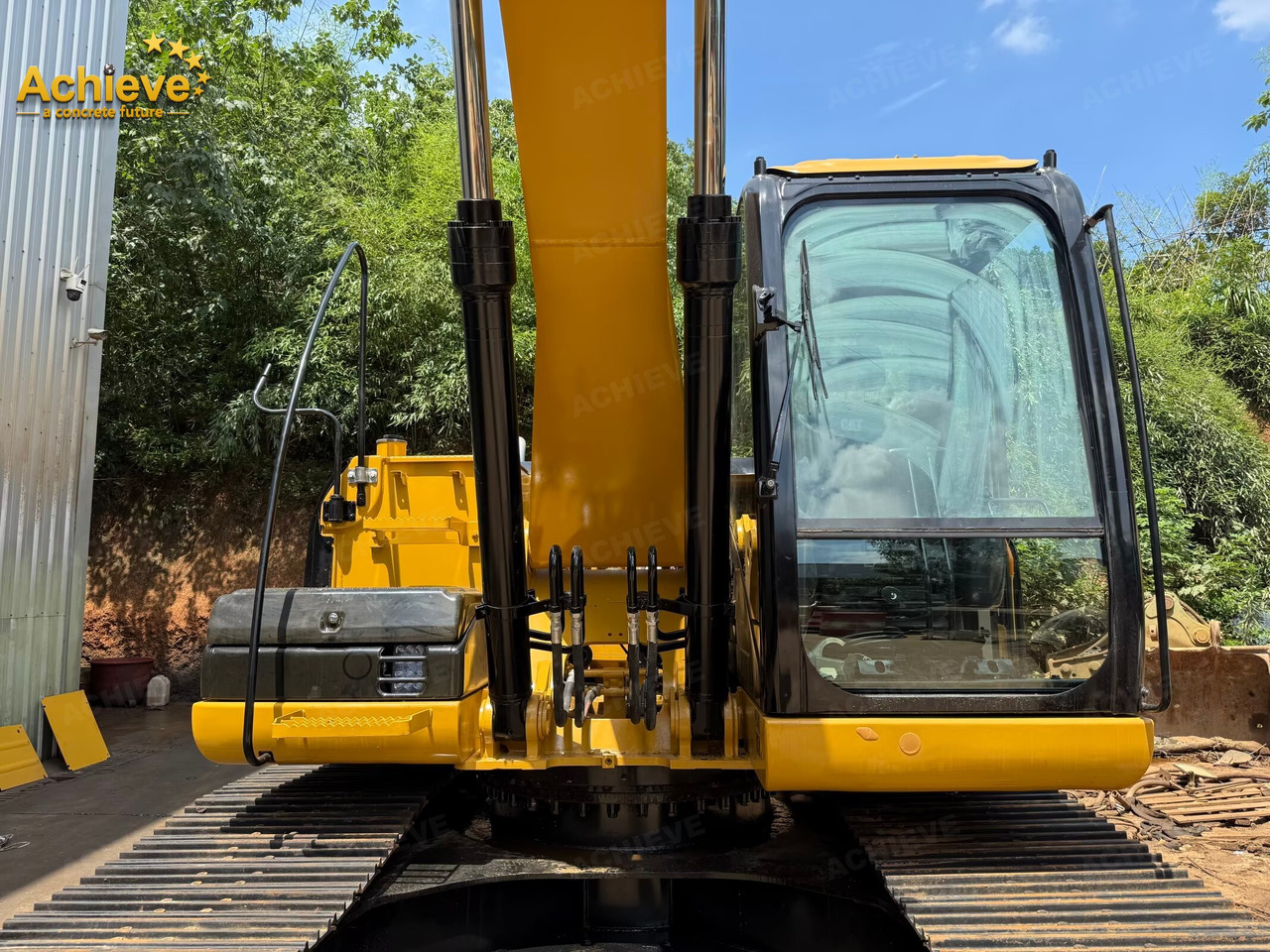

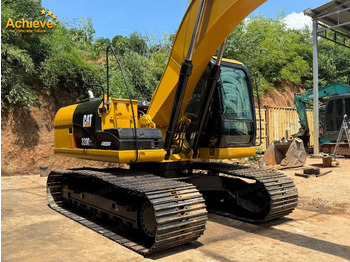

מחפר סורק CATERPILLAR 【ACHIEVE】TOP CONDITION!!! CAT 320D tracked excavator

320D2/D2 L

Medium Excavators

The 320D2/D2 L carries long time proven features and is configured for heavy construction, will deliver great fuel savings and productivity in truck loading, trenching and lifting.

Engine Model

Cat C7.1

Net Flywheel Power

109 kW

Bore

105 mm

Stroke

135 mm

SPECIFICATIONS FOR 320D2/D2 L

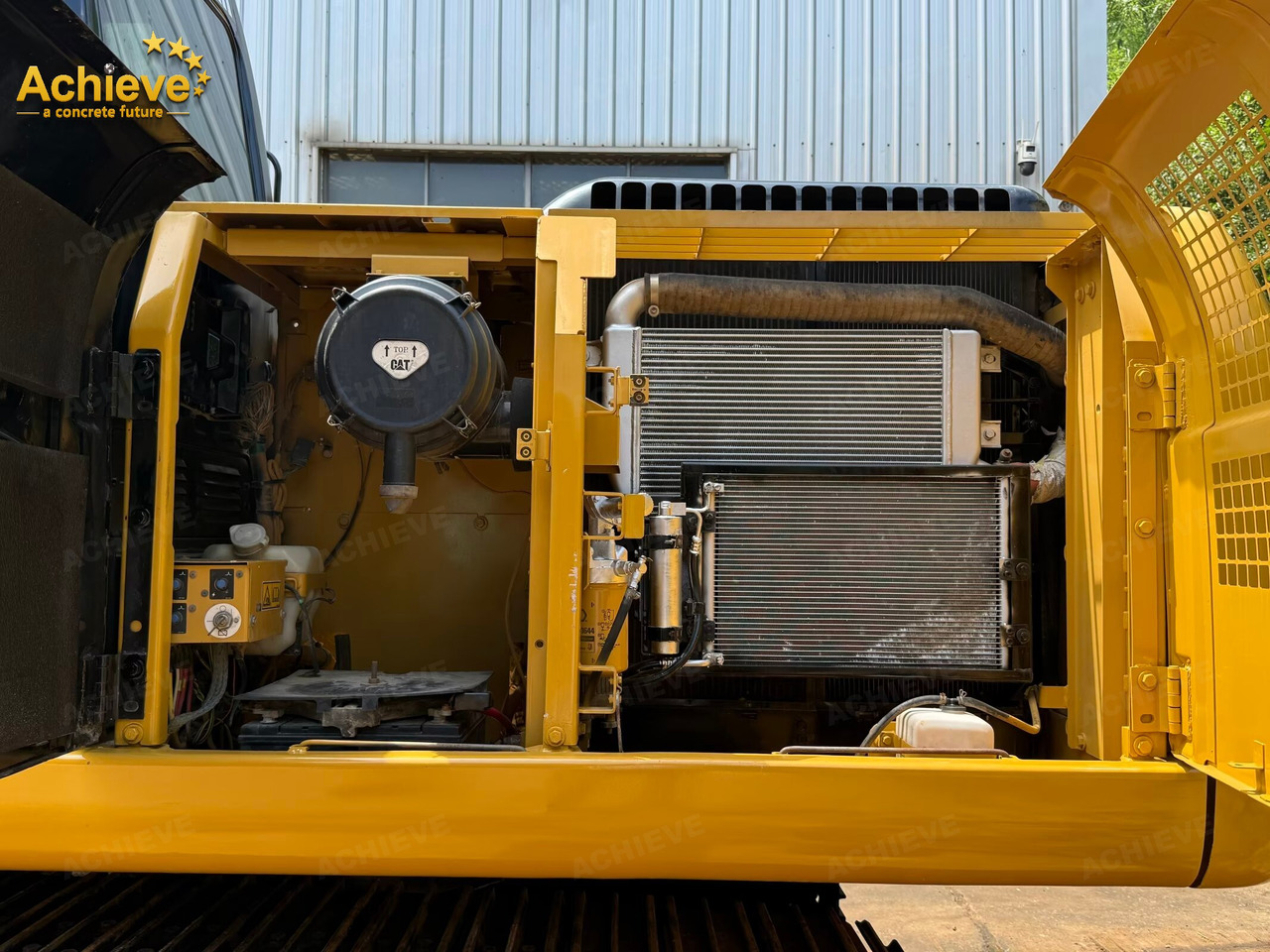

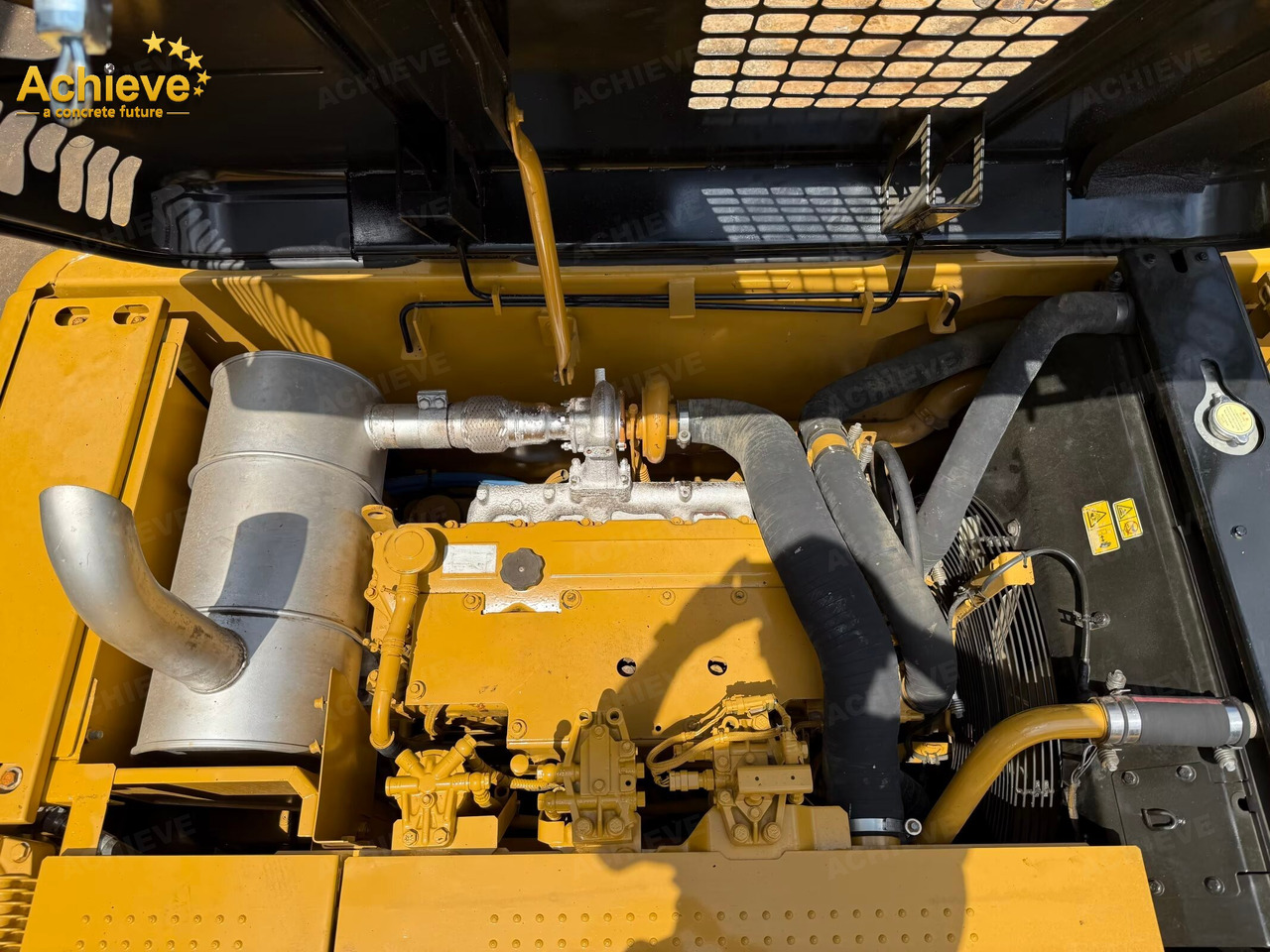

Engine

Engine Model Cat C7.1

Net Flywheel Power 109 kW

Bore 105 mm

Stroke 135 mm

Displacement 7.01 l

Net Power - SAE J1349 109 kW

Engine Power - ISO 14396 112 kW

Note (3) Rating at 1,800 rpm.

Note (2) The altitude capability (without aid) of 320D2/D2 L is up to 4000 m (13,123 ft) with natural power derate above sea level.

Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.

Emissions The 320D2/D2 L meets Tier 3, Stage IIIA equivalent emission standards.

Weights

Operating Weight 22300 kg

Maximum Operating Weight 22300 kg

Minimum Operating Weight* 21100 kg

Note (1) *R5.7 (18'8") HD Reach Boom, R2.5 (8'2") B1 HD Reach stick, GD 1.00 m3 (1.3 yd3) bucket and Standard undercarriage with 600 mm (24") shoes.

Note (2) R5.7 (18'8") HD Reach Boom, R2.9 (9'6") B1 HD Reach stick, GD 1.00 m3 (1.3 yd3) bucket and Long undercarriage with 790 mm (31") TG shoes.

Service Refill Capacities

Fuel Tank Capacity 410 l

Cooling System 25 l

Engine Oil 22 l

Swing Drive 8 l

Hydraulic Tank 138 l

Hydraulic System - Including Tank 260 l

Final Drive 8 l

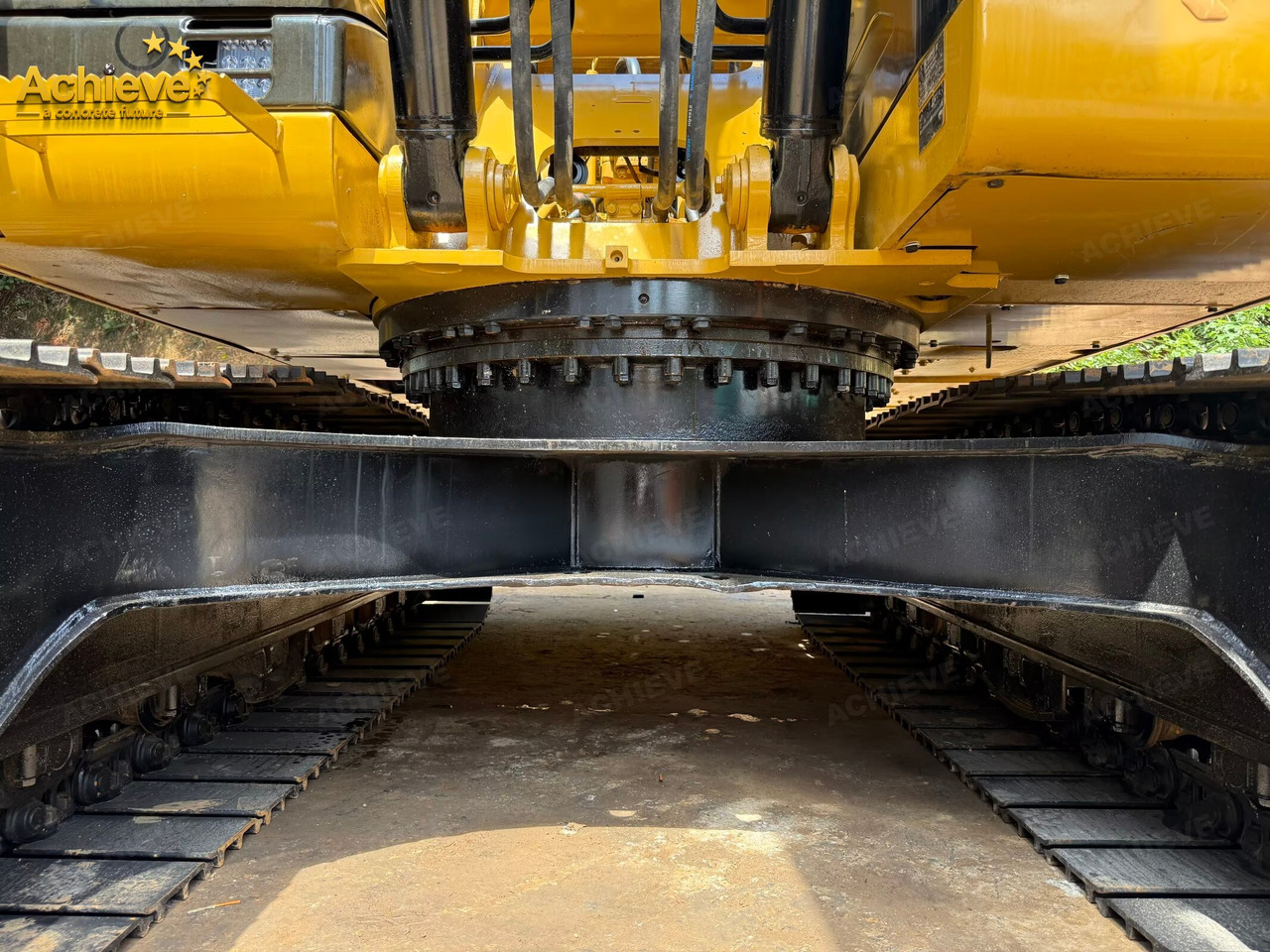

Swing Mechanism

Swing Speed 10.9 r/min

Swing Torque 61.8 kN·m

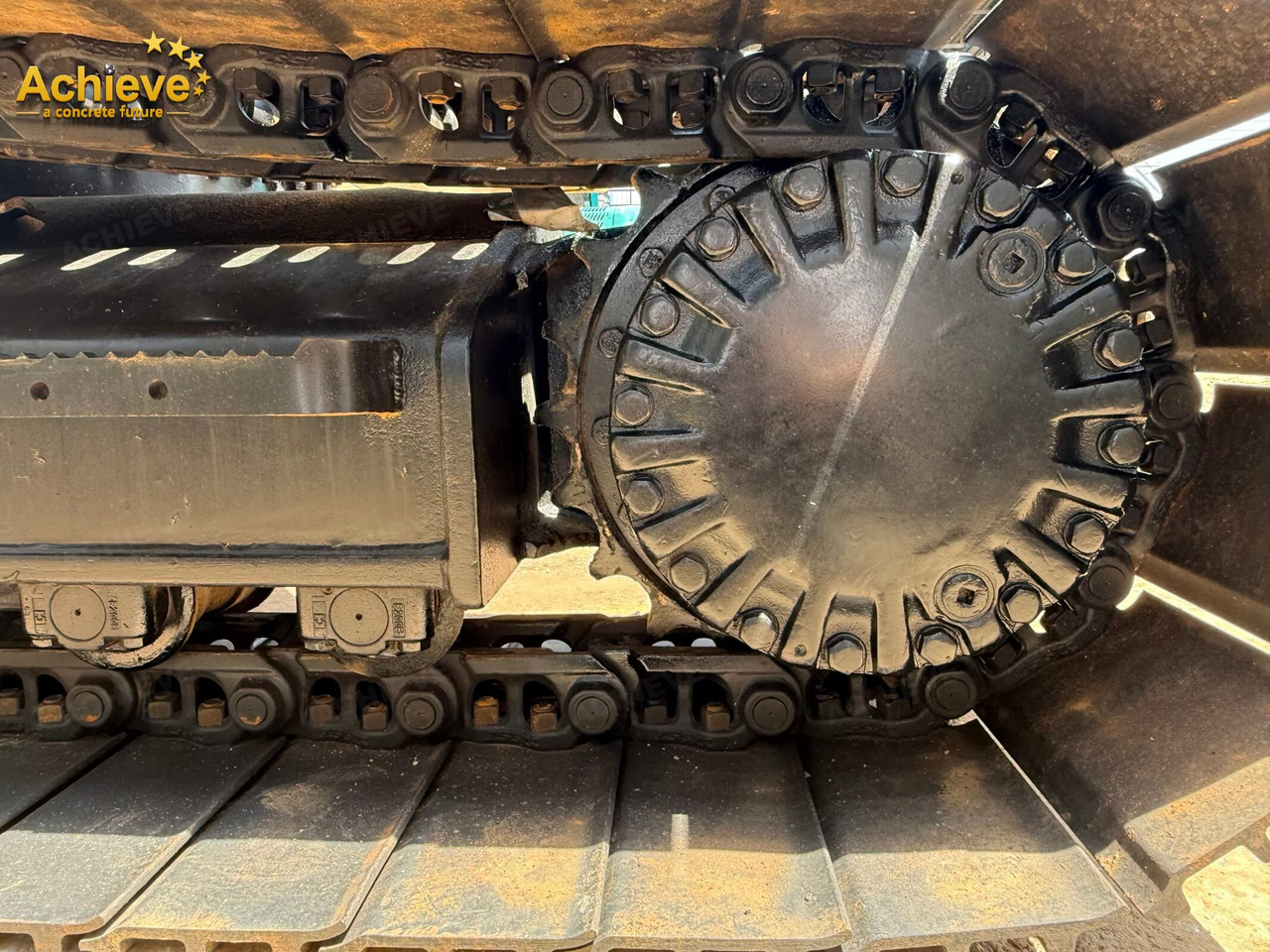

Drive

Maximum Drawbar Pull 205 kN

Maximum Travel Speed - High 5.4 km/h

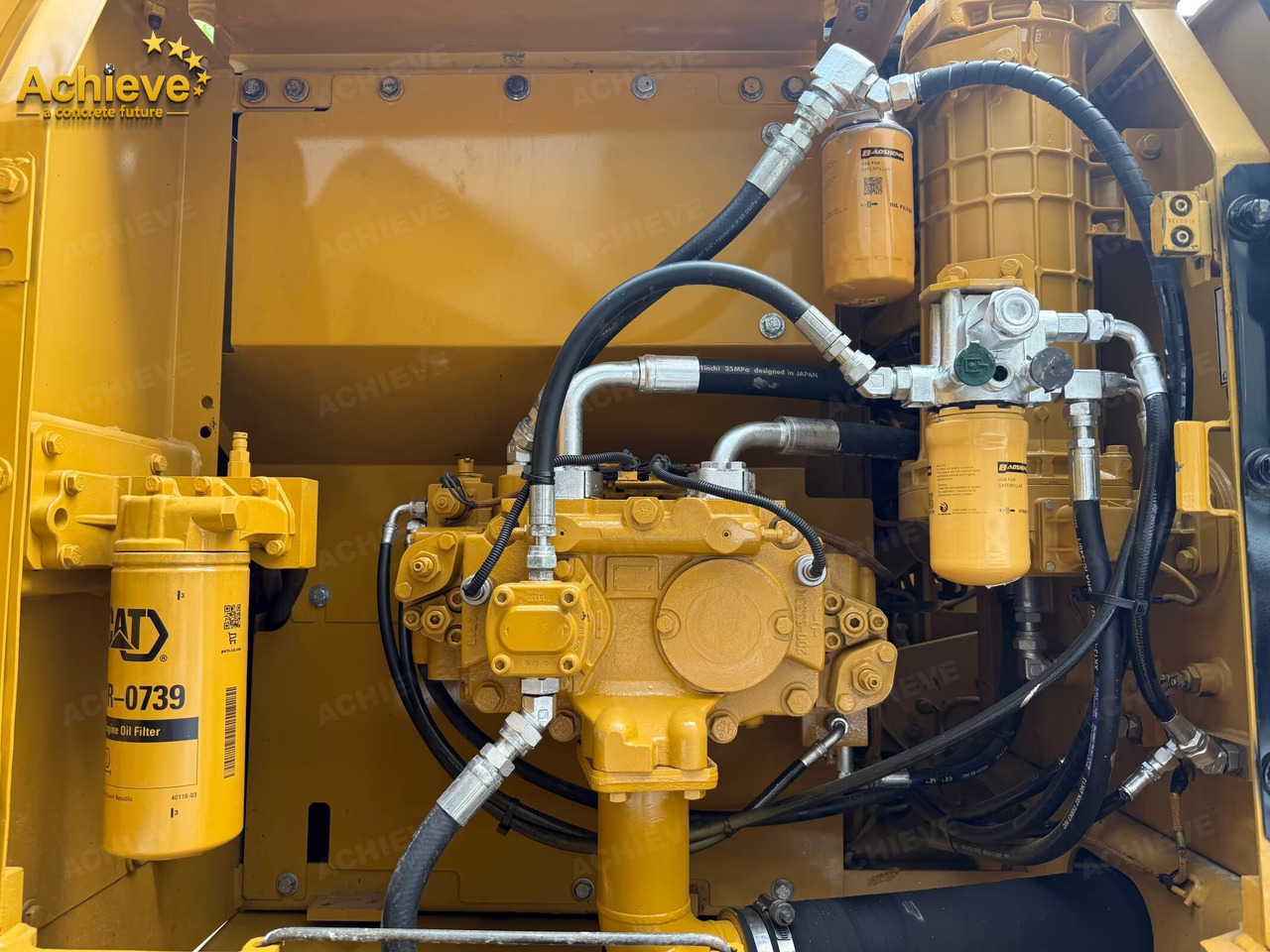

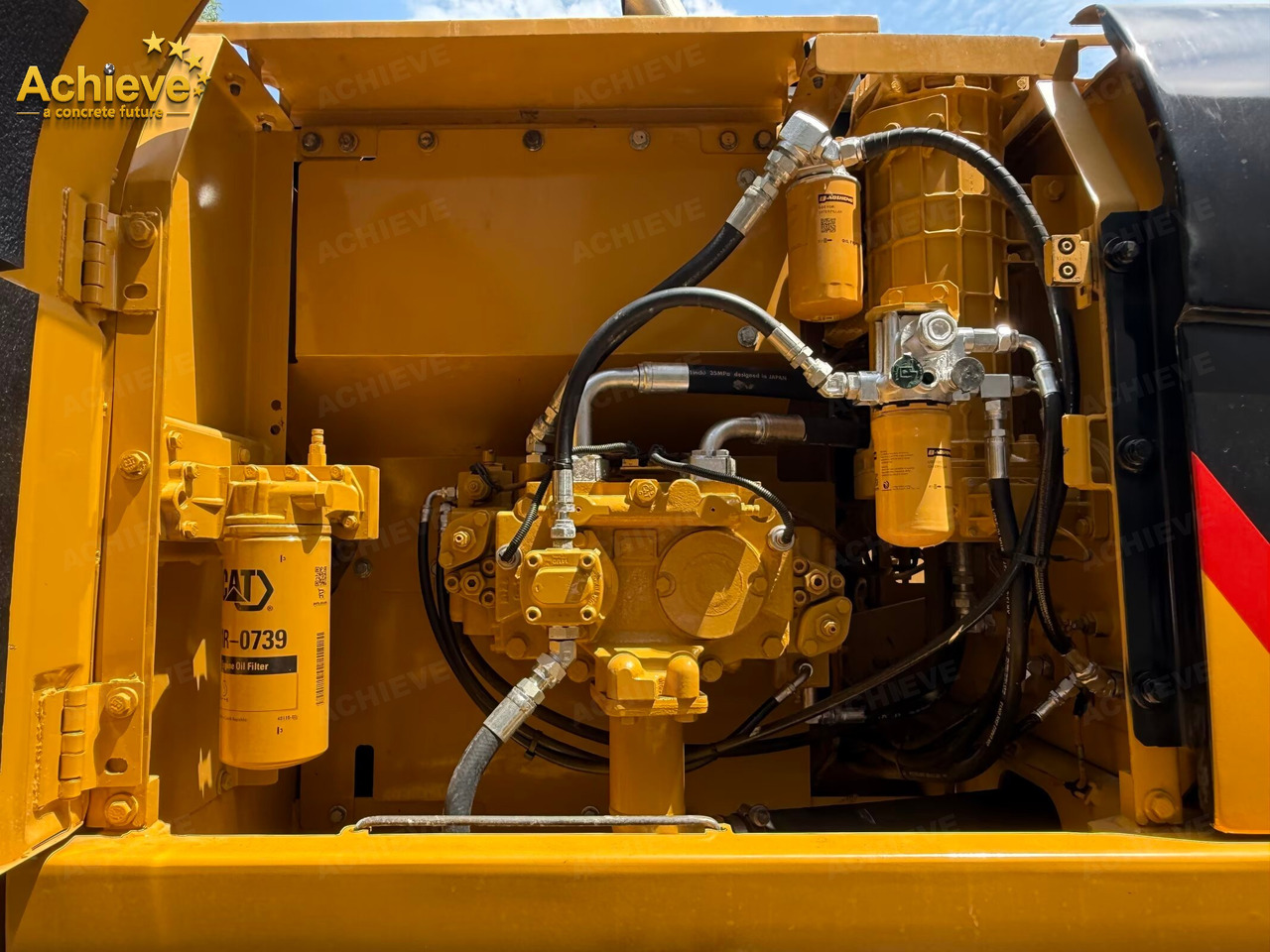

Hydraulic System

Standards

Brakes SAE J1026/APR90

Cab/FOGS SAE J1356 FEB88 ISO 10262

Working Ranges - HD Reach Boom - 5.7 m (18'8)

Maximum Digging Depth 6720 mm

Bucket Tip Radius 1560 mm

Maximum Reach - Ground Line 9890 mm

Maximum Reach - Ground Line 9470 mm

Maximum Loading Height 6490 mm

Bucket Tip Radius 1560 mm

Engine RPM

Operation 1700 r/min

Travel 1800 r/min

Working Ranges - Super Long Reach Boom - 8.85 m (29'0)

Maximum Reach - Ground Line 15730 mm

Maximum Loading Height 11010 mm

Bucket Tip Radius 1230 mm

Maximum Digging Depth 11880 mm

Sound Performance

ISO 6395 - Exterior 102 dB(A)

Note (1) When properly installed and maintained, the cab offered by Caterpillar, when tested with doors and windows closed according to ANSI/SAE J1166 OCT98, meets OSHA and MSHA requirements for operator sound exposure limits in effect at time of manufacture.

ISO 6396 - Inside Cab 72 dB(A)

Note (2) Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.
