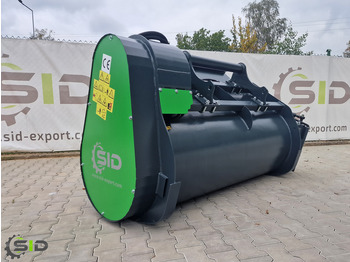

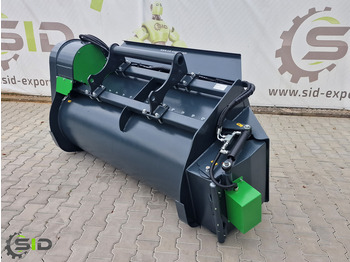

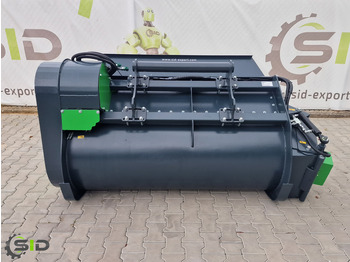

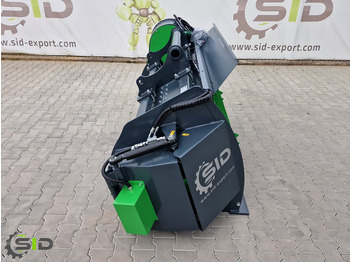

מכונת בנייה SID Side discharge bucket / Schaufel mit seitlichen Auswurf 0,60 m3

A side discharge bucket is an advanced tool designed for efficient operation in challenging construction conditions. Thanks to its design with a hydraulic discharge mechanism, it allows for quick and precise spreading of materials such as sand, gravel, and soil.

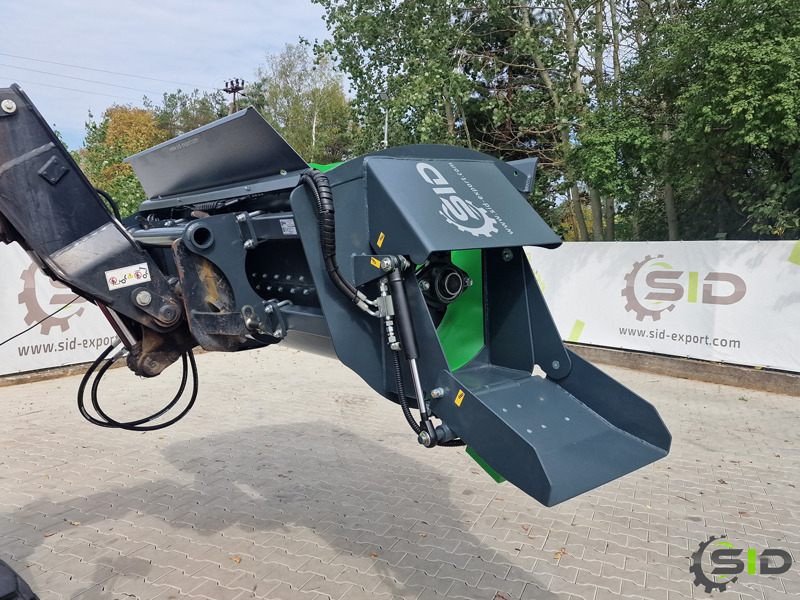

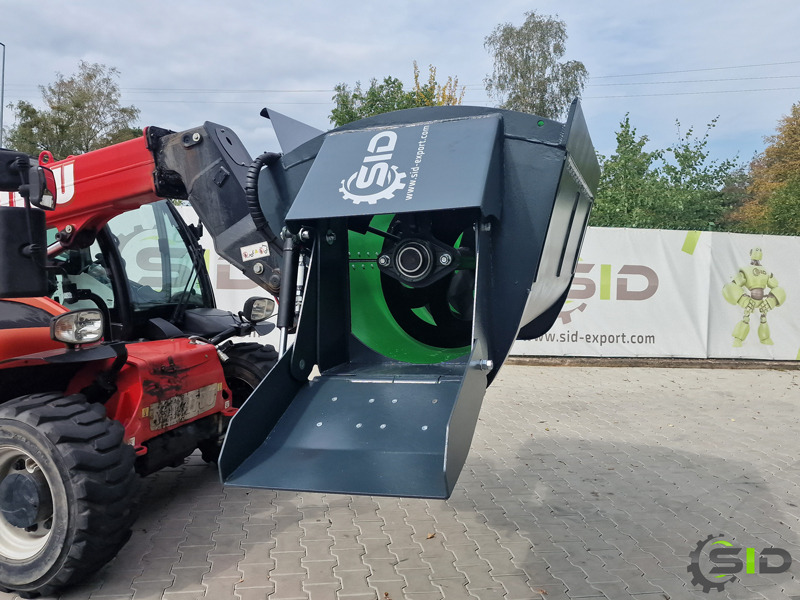

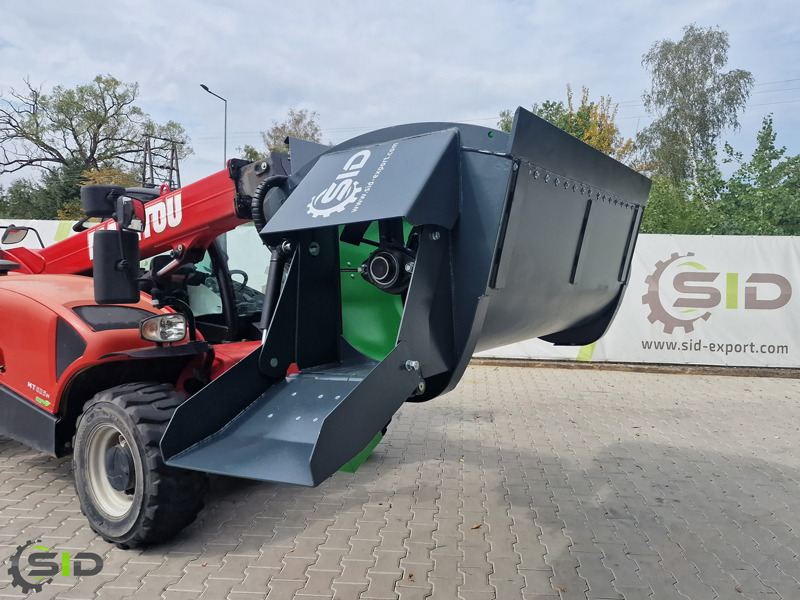

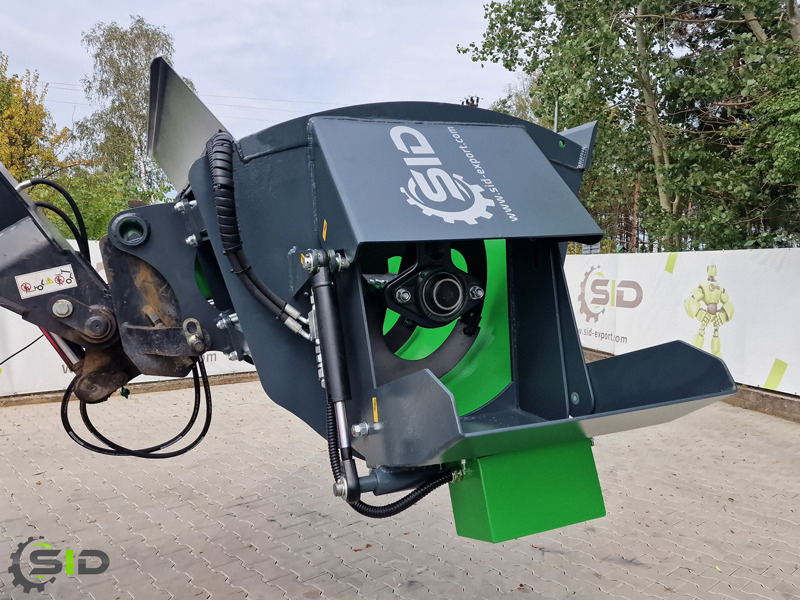

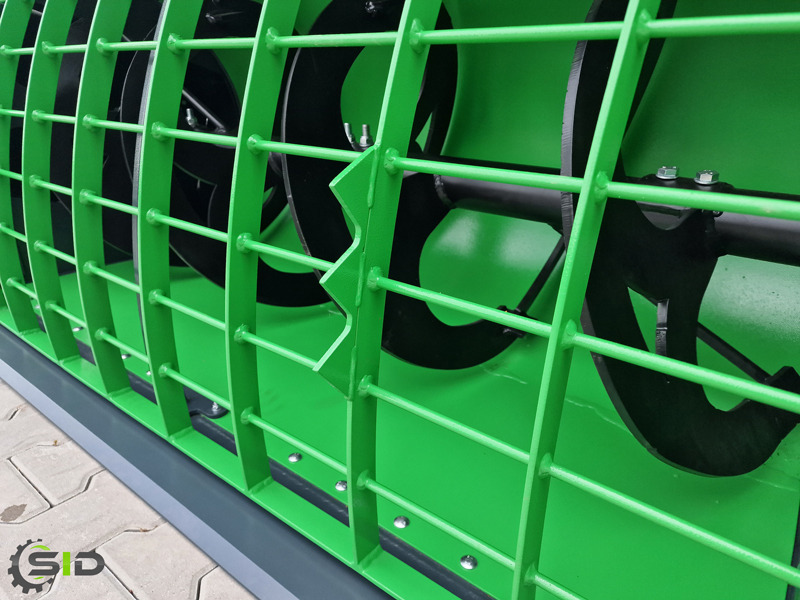

The side discharge bucket is hydraulically driven from the installation on the arm of the machine. A protective flap prevents unwanted larger caliber material. The forward-extended lower part with a cutting edge facilitates the collection of raw materials. The backfill bucket minimizes costs due to the time it takes to backfill trenches. By moving along the trench, the backfill bucket replaces traditional backfilling with an excavator or shovel in a way that is unparalleled for the efficiency of the work performed.

- Supporting the small rack in the gearbox with bearings - removing the load on the hydraulic motor.

- The lower part with a blade has been moved forward in the mixer for easier scooping of gravel straight from the heap.

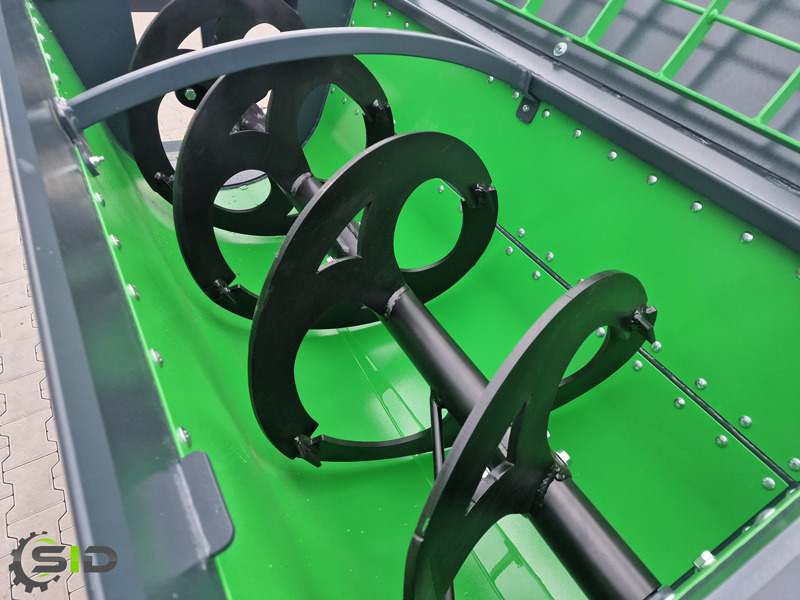

- The Tornado concrete mixer is made of S355 steel with a thickness of 6mm with replaceable 3mm thick inserts, screwed to the mixer structure in places exposed to abrasion.

- Driven by the 800 cm3 OMT orbital hydraulic motor.

- Power transmission through the chain 20b1.

- Easy access to chain lubrication.

- Self-aligning bearings with the possibility of lubrication.

- Additional leakage of leaks ahead of the bearings.

- Additional bearing seals.

- The option to change components to those resistant to high temperatures, which allow for work with hot materials such as asphalt.

- 12-month warranty.

Additional option:

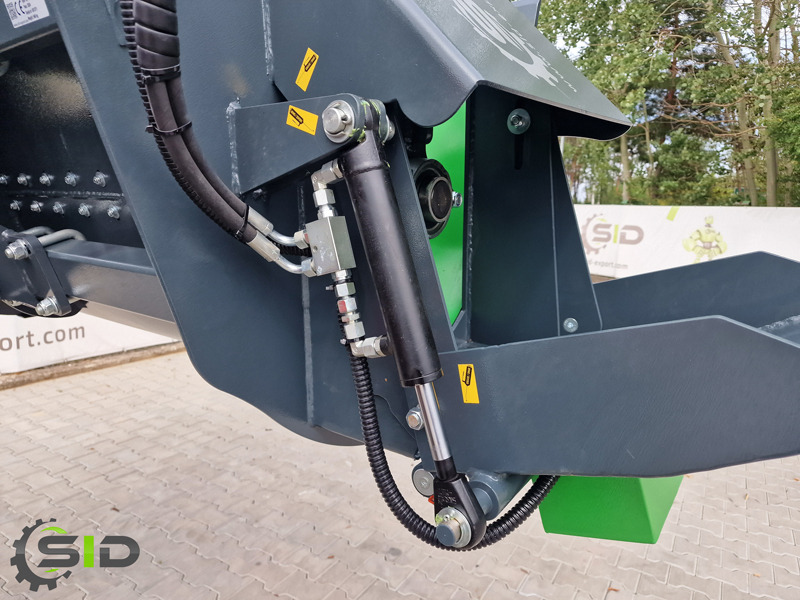

- Hydr. Opening Flap - 630 €

- Hardox insert - 410 €

- Hardox snail - 410 €

- * Price without screwed on fixing - TYPE WD

Width - Volume SAE - Weight - Price*

1500 mm - 0,60 m3 - 845 kg - 6 475 €

1750 mm - 0,80 m3 - 908 kg - 6 865 €

2000 mm - 1,00 m3 - 972 kg - 7 585 €

2200 mm - 1,20 m3 - 1070 kg - 8 245 €
