מכונת כריכה Horizon SB-09

Number of Colours: 9

-

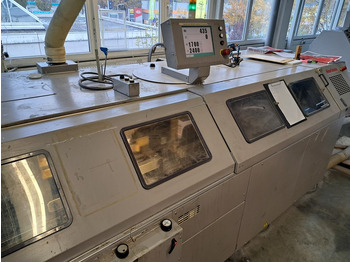

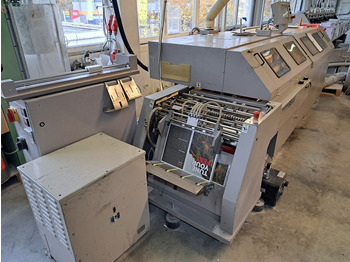

Horizon SB-09 9-Clamp Perfect Binder, used.

The Horizon SB-09 is a fully automatic 9-clamp perfect binder designed for industrial book production. The system is suitable for both medium and large print runs, delivering high productivity, flexibility, and a wide range of automation features. The machine can process both EVA and PUR hotmelt adhesives and is designed for use in inline production lines as well as a stand-alone solution.

Key Features:

- Fully automatic setup and operation for minimal setup times and high efficiency.

- 9-clamp system for continuous high-speed production.

- Compatible with EVA and PUR hotmelt adhesives (interchangeable glue tanks).

- Two glue application rollers for optimal glue penetration and strong binding.

- Automatic book thickness detection and precise cover scoring (up to 4 scores).

- Flexible cover feeding: SB-09V with roller grip, SB-09VF with rotary grip for flap covers.

- Production speed up to 4,000 books per hour.

- Integration into automated production lines with JDF workflow (pXnet).

- Optional: Quality control via weight checking, image checking, and reject unit.

- Ideal for offset and digital printing, variable book sizes and thicknesses.

Technical Data:

- Number of clamps: 9

- Book block thickness: 1 – 45 mm

- Max. book format: 400 x 280 mm (off-line), 330 x 250 mm (in-line)

- Min. book format: 148 x 105 mm

- Max. cover size: 400 x 660 mm

- Min. cover size: 135 x 220 mm

- Cover weight: 82–302 gsm (normal), 105–348 gsm (coated)

- Speed: up to 4,000 books/hour

- Adhesive: EVA and PUR hotmelt (interchangeable tanks)

- Power supply: 3-phase, 200 V, 50/60 Hz, 23/25 A

- Machine dimensions (system): approx. 4,720 x 1,685 x 1,660 mm (SB-09V)

All-Inclusive Service Package

We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical

Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
