מכונת הדפסה Horizon VAC-100 m

Number of Colours: 10

-

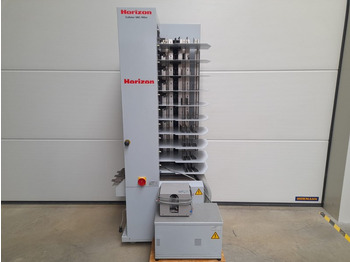

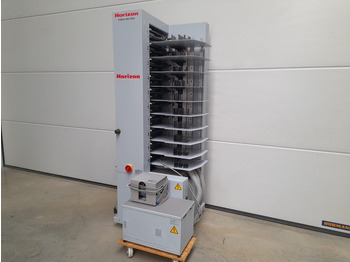

Horizon VAC-100m Air-Suction Collator Tower

The VAC-100m is the ideal solution for print shops looking to expand their production capacity without investing in completely new systems. Its easy integration with the VAC-100a tower and high reliability make it a valuable addition to your production line.

Key Features:

Cost-efficiency:

The VAC-100m is a cost-effective expansion solution as it operates without its own display and control unit. This reduces acquisition costs and allows you to expand existing systems efficiently.

Expandable Capacity:

With the ability to connect up to 5 VAC-100m towers to one VAC-100a tower, you can flexibly expand your collating capacity to up to 60 stations. This enables efficient handling of large jobs and a significant increase in your production capacity.

Reliability:

With error prevention features such as misfeed, double-feed, and jam control, the VAC-100m ensures that your production runs smoothly and without interruptions.

Specifications:

- Technology: Touch & Work (via VAC-100a)

- Number of stations: 10 per tower

- Expandability: Up to 6 towers (60 stations)

- Error prevention: Misfeed, double-feed, and jam control

- Job memory: 9 storage slots for repeat orders

- Programs: Double cycle (non-stop operation), sheet insertion (single and double), booklet making program, block program, selective collating

- Sheet size: Max. 500x350 mm; Min. 148x120 mm

- Paper weight: 40-250 g/m²

- Loading capacity: 55 mm per station

- Performance: Up to 9,500 sets/h

- Power: 230V; 50/60Hz - 1.86 kW

- Dimensions: 842x652x1,961 mm

- Weight: 310 kg

3 MONTHS WARRANTY

We guarantee that the machine operates perfectly and we take responsibility for 3 months. Even after this period, we are always there for you and support you in solving any problems.

All-Inclusive Service Package

We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical

Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
