Netherlands, Niederlande, GroenloGegengewicht: 34300 kg

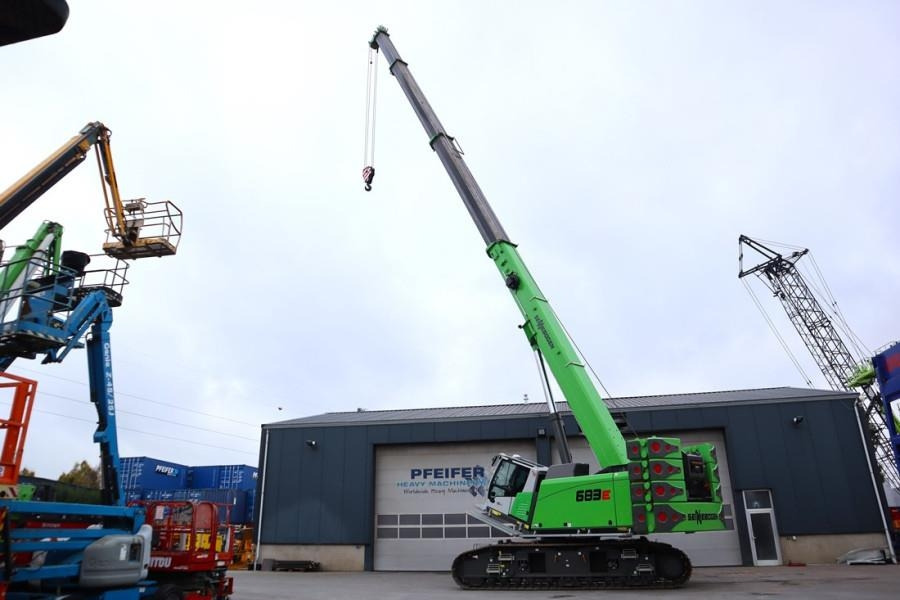

SENNEBOGEN 683E YEAR 2023
80t TELESCOPIC CRAWLER CRANE
This machine has a valid inspection and can be sold with warranty. Inform about our conditions!
Manufacturer: Sennebogen
Typ: 683E
Building year: 2023
Serial nr: 683.5.507
Fuel: Diesel
Working Hours: 1.294 h
Loading / lifting capacity: 80.000 kg
Max boom lenght: 11 - 42 m
Boom sections: 5
Number of hook blocks: 2
50t - 3 sheaves - 10t - 1 sheave
Number of winches: 2
Travel speed: 0 - 2.8 km/h
Counterweights: 34.3T
Engine manuf. / typ: Cummins / B6.7 Stage V
Capacity in KW: 188
Capacity in HP: 252
- 2nd hoist: 72kN pulling force (maximum on first layer), Low-maintenance hydraulic winch for 20 mm hoisting wire, length 180 m with pocket lock
Runner with a capacity of 7.2 tons.
- 10-tons hook block, for 20 mm cable with single hook.
- Folding walkway, without handrail, on the side of the cabin.
- Folding walkway, without handrail, on both sides of the upper structure.
- Hydro-Clean filter, extra fine filter for hydraulic system. Necessary if biological hydraulic oil is used.
- Gear pinion lubrication for the turntable by means of grease pump, operable from the cabin.
- Automatic central grease lubrication for telescopic crane:
Pivot point main boom
Pivot point luffing cylinder
Pivot point inside slewing ring
- Electrically powered diesel fuel pump, 50L/min. with automatic level cut-off.
- Radio with speakers, USB and Bluetooth function.
- Roof window cabin in bulletproof glass version.
- 2 LED work lights (24V / 50 Watt) mounted at the bottom of the base boom.
- Virtual Wall work limitation system – individually programmable. Limitation of swivel range, boom height and working radius.
- Testing and programming of 4 degree load table in LMB, for main boom, Runner and all track widths.
- Operating and maintenance manual.
All necessary documents and papers.
CE (Declaration of Conformity).

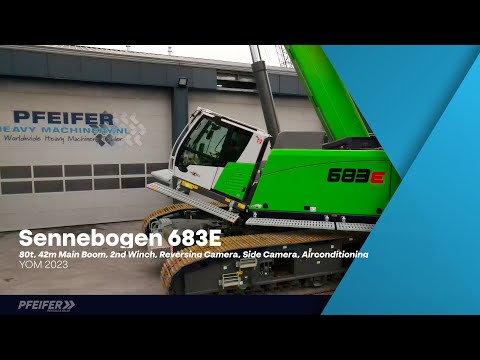

More detailed pictures / product movie on our website.
pfeifermachinery.com
Above specifications are subject to change without prior notice and subject to errors
