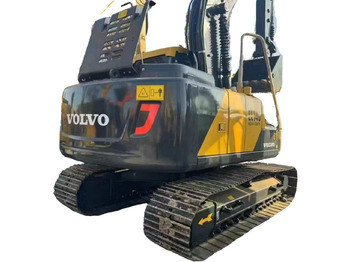

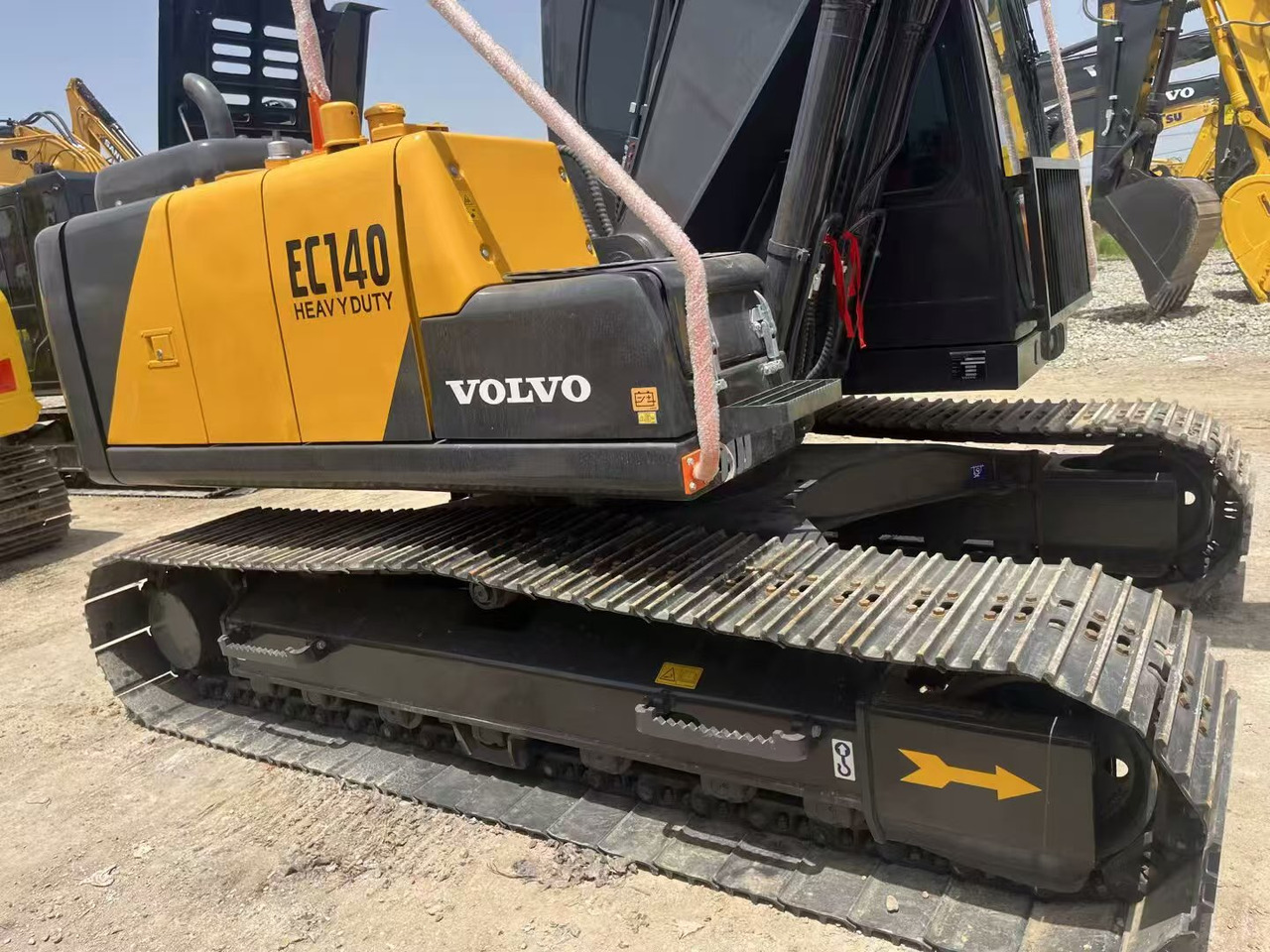

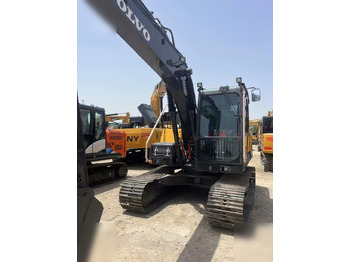

China, Laihe Road, Feidong County, Hefei City, Anhui Province Post code: 23160Volvo EC140BLC Prime – Key Specifications & Features
1. General Overview
Machine Type: 14-ton class crawler excavator.
Operating Weight: 13,800 kg (standard configuration).
Bucket Capacity: 0.55–0.93 m³ (varies by attachment).
Emission Compliance: Meets EU Stage II / EPA Tier 2 standards.
2. Engine & Performance

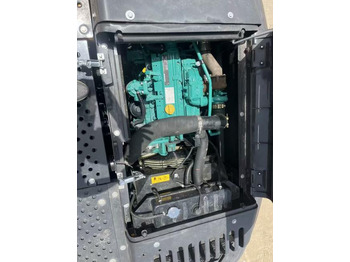

Engine Model: Volvo D4D (turbocharged, 4-cylinder diesel).
Rated Power: 69 kW (94 hp) @ 2,100 rpm.
Max Torque: 390 N·m @ 1,500 rpm (high torque at low RPM for fuel efficiency).
Cooling System: Water-cooled.
3. Hydraulic System
Hydraulic Pumps: 2× variable axial piston pumps + gear pump (max flow: 118×2 + 21 L/min).
Working Pressure: 32.4/34.3 MPa (main system).
Swing & Travel Motors: Axial piston motors with mechanical brakes.
4. Digging & Mobility Performance
Max Digging Depth: 5,530 mm.
Max Reach: 8,330 mm.
Travel Speed: 3.2 / 5.5 km/h(low/high).
Gradeability: 70% slope(excellent for rough terrain).
-Ground Pressure: 34.6 kPa (reduced impact on soft ground).
If you are looking for construction machinery, such as excavators, bulldozers, loaders, forklifts, etc., we can meet all your needs. Our prices are reasonable and the quality of the machinery is high. If you are interested, please contact me privately.
emile:19965079758@163.com
whatsapp:+86 19965079759
