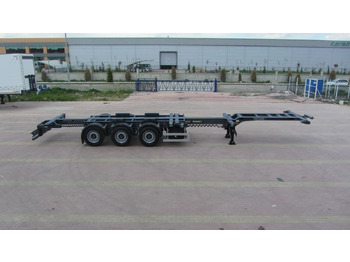

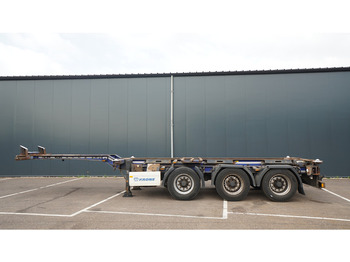

הַחכָּרָה Reis Treyler Telescopic Container Carrier Semi Trailer

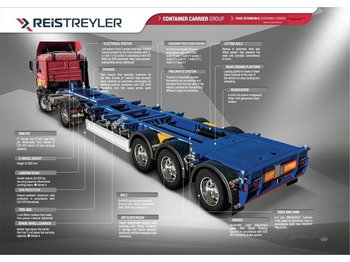

CONTAINER CARRIER SEMI-TRAILER TECHNICAL SPECIFICATION

Tractor Type

— 4x2 tractor suitable for 1100mm King Pin Height. (Total GWA 44 tons)

Chassis

—High Graded Material “I” profile it is produced with gas welding, it has high-quality strength, Standard chassis Type. (Required changes will be made after the order confirmation)

—Special reinforced bracket on the square beam profile at the front and rear.

—Rear cross twist lock cross member will be 110 mm from the center to the edge of rear bumper.

—Rear Bumper and light and license plate holder will be moved to the inner side with 100 mm.

—Upper level of the chassis will not exceed 1150 mm with 385 65 R 22,5 tires.

Over All Lenght Dimension

—Length 9 700 mm x Width 2550 mm x Height 1250 mm

—Wheelbase (between king pin and center of axles) +/- 7550 mm

Vehicle Type

—Skeleton chassis

Container twist lock —12 PCS. 1 x 20 feet, 2 x 20 feet, 1 x 30 feet, feet 1 x 40 feet and 1x 45 feet

—30 ft. cross member portable place is not needed to reinforce the neck of the chassis.

King Pin

—2" kingpin and second king pin position. Jost or OMS brand

—Pin detachable from below made by SAE standards 8 bolt type.

Axles —3 x 09.000 kg carrying capacity SAF brand Disc Brake Type

—First axle with lifting mechanism, controlled manually on the chassis

Distance Between Axles

— 1320 mm

Brakes & Suspension

—Air Suspension

—EBS Brake System KNORR brand, (2S/2M RSS)

— Automatic Slack Adjuster

—3 units of 80 lt, 40 lt and one spare air tubes

Landing gear

—Double Speed,

—24000 kg carrying capacity SAF

—Mechanical Landing Gears

Rear Bumper

—Suitable 70/221 / AT-version of the rear bumper

Tire Chock

—Carriers with 2-unit wheel chock

Tires and Rimes

—6 PCS 385/ 65 R 22,5 Single tire type

—Bridgestone brand

— 120 offset 22,5 x 11,75 Rim, 280,8 x 335 x 10 wheel stud M 22 x 1,5

Mud Cover

—6 Units full plastic mudguards fited with galvanized steel holders.

Spear Wheel Carrier

—N/A or Optional

Toolbox

—N/A or Optional

—Document holder

Water Tank

—N/A or Optional

Paint

—Steel Material surface is cleaned by grit metal and send, which is shot blasted on the surfaces of the metal.

—2 Floor Epoxy primers are made and final paint with standard RAL 7024 or demand of the customer,

—Galvanization is optional.

Electrical System and Lightening

System

—3 unit’s amber-colored lights placed on both sides

—Park lamps at the rear side of the vehicle

—License plate lamps,

—Reflector triangles,

—Flameproof electrical system

—2 X 7-pin and 1 x 15-pin electrical socket. (The connection pins will be mounted on special designed front panel)

—Electrical system is ASPÖCK brand Euro point 2 or Euro point 3
