ציוד מחסן TSC4500X2A LP wheel alignment lift - On floor - Free wheel lifting system - 4.8 m led lightened runways (63 cm wide) - 210 cm lifting height - 4.5 T

The price is excluding tax and delivery costs

-

Capacity: 4500 kg - On floor

-

Drive motor: 3 kW

-

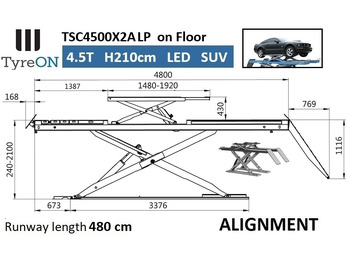

2nd scissor: 3.5T - H43cm - L148 -- 192 cm

-

LED runway lighting with protection grilles; Hose set + floor covers; IR synchronization monitoring

-

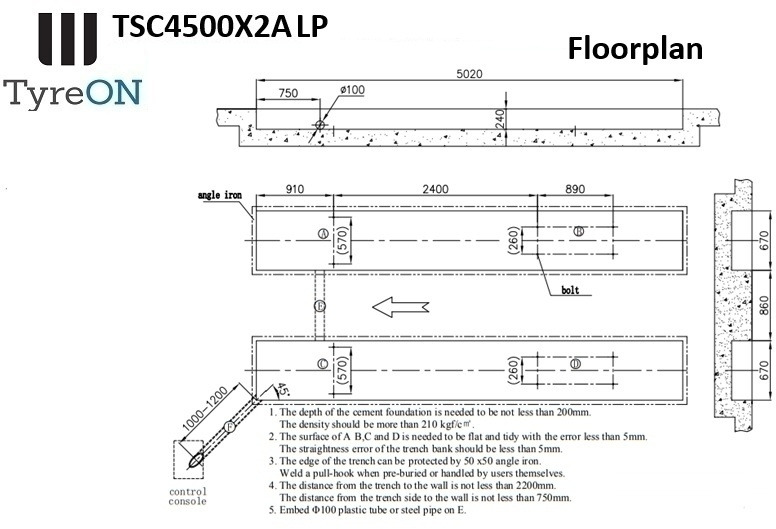

Foundation: C20/25 - 555 x 280 x 20 cm

-

Lifting/Lowering: 60 s

-

Packaging: L520 x B80 x H50 cm - 2700 kg (scissorlift)

-

Hydraulic oil is not included: 20 L TyreON HV-ISO-32 is optional

-

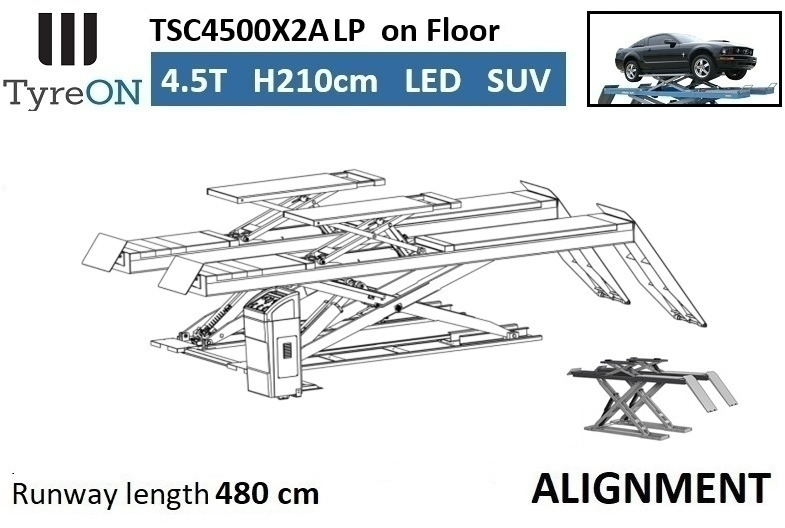

Alignment lift - Wheels-free lifting system - On floor mounted

With double tip-lever system and 24 cm flat.

The second scissor makes it possible to lift a vehicle with all four wheels free.

With sliding plates at the back and recesses with insert plates for turntables at the front.

Simple to use and maintain, space-saving design.

A runway is made from a single steel plate and cut to size with a laser cutter.

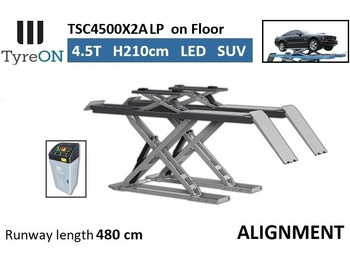

Robust 4.5T on floor alignment scissor lift.

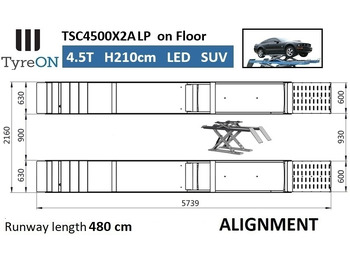

Perfectly balanced on-floor alignment lift for precise wheel alignment with 90 cm room between the 480 cm long runways.

• New!
• Installation height only 24 cm
• Alignment lift with a total length with ramps of 608 cm

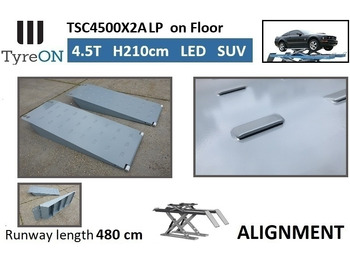

• Punched ramps (anti-slip profile)
• Wide runways of 63 cm
• Within 60 sec. to the highest point
• The platforms of the wheel-free lifting system (2nd scissor) are extendable
• Runways with cutouts for turntables - shims included
• Runways with built-in movable rear wheel plates – mechanically locked
• The movable rear wheel plates are extra long - 1.92 meter
• Large working range from very short to very long wheelbase

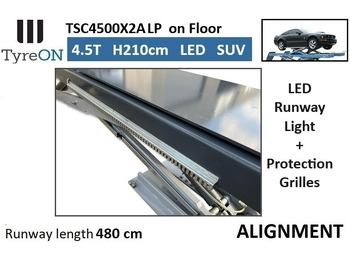

• Integrated LED lighting over the full length of runways (protected with grilles)
• Emergency lowering system in the event of power failure
• Smooth and safe lifting and lowering, eight cylinders for both runways and two cylinders for the wheel-free lift system
• Heavy duty 3 kW hydraulic pump with load-dependent lowering valve
• Multifunctional: for inspection, maintenance, repair, wheel alignment, testing of headlights and driver assistance systems, etc.
• Required air connection 4 - 8 bar

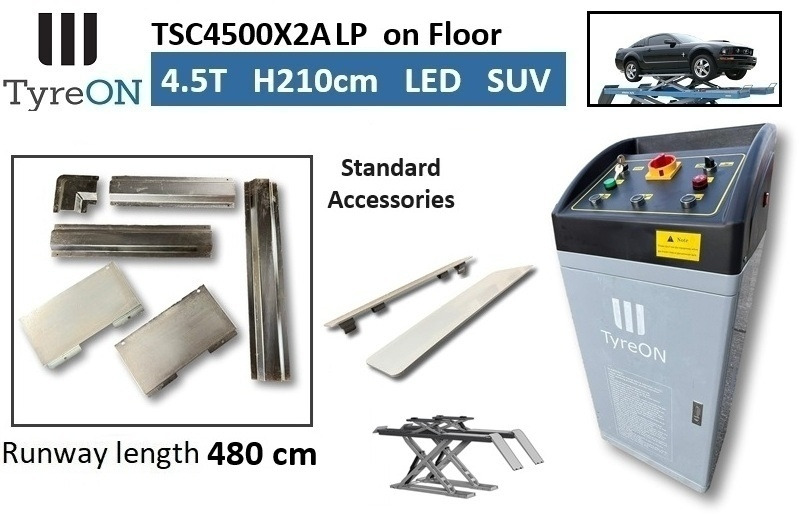

Levering inclusief

• Installation and operating manual for the alignment scissor lift
• Set of galvanized gutters and floor protection caps
• Wiring to the alignment scissor lift, hydraulic and pneumatic hose set + accessories

Hydraulic oil is not included - 20 Liters of HV-ISO-32 can be ordered as an option for the alignment scissor lift
